Choosing between a 6-inch, 8-inch, and 10-inch drop hitch isn't about picking the biggest hitch your truck can handle.
It's about getting your trailer as close to level as practical.
A truck that sits much higher than the trailer coupler may need additional drop. A lower truck towing a relatively tall trailer may need less drop — or even rise.
That's why the right adjustable hitch depends on the actual height difference between your truck's receiver and your trailer coupler.
So, do you need a 6-inch, 8-inch, or 10-inch drop hitch?
Let's measure first and choose second.

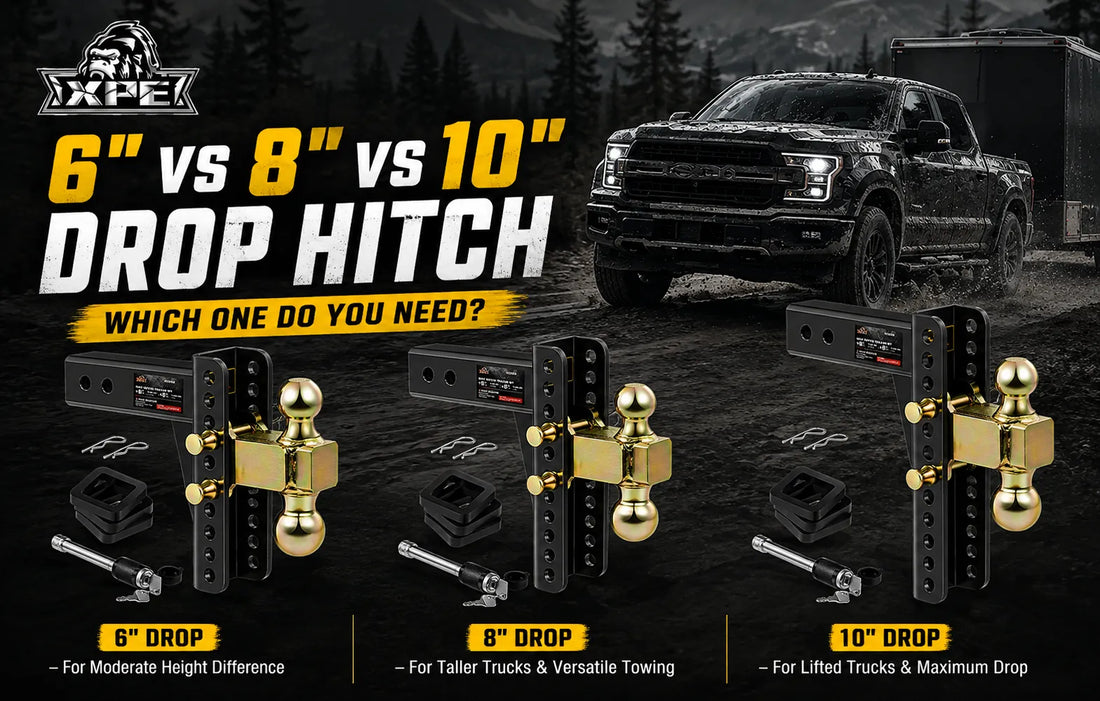

6-Inch vs 8-Inch vs 10-Inch Drop Hitch: Quick Comparison
| Drop Range | Often Makes Sense For | Main Advantage |
|---|---|---|
| 6-Inch | Stock-height or moderately raised trucks | Enough adjustment without excessive hitch length |
| 8-Inch | Taller pickups, different trailer heights, versatile towing | More adjustment flexibility |
| 10-Inch | Lifted trucks and large truck-to-trailer height differences | Maximum drop for higher receiver positions |
These are general use cases — not rules.
Your actual measurement should determine the hitch you choose.
First: What Does “Drop” Mean on a Trailer Hitch?
Drop is the vertical distance that lowers the hitch ball relative to the receiver.
Imagine your truck's receiver sits at:
24 inches from the ground
But your trailer coupler sits at:
18 inches from the ground
The difference is:
24 − 18 = 6 inches
That means you need approximately 6 inches of drop to bring the hitch ball closer to the trailer's coupler height.
If your truck receiver sits significantly higher, you may need 8 inches, 10 inches, or more.
If the trailer coupler sits higher than the truck receiver, you need rise instead of drop.
The goal is not to make the hitch look aggressive.
The goal is to tow the trailer as level as practical.
How to Measure the Drop Hitch You Need
You only need two measurements.
Park both the truck and trailer on reasonably level ground.
Make sure the trailer itself is level before measuring.
Step 1: Measure the Truck Receiver Height
Measure from the ground to the top of the inside opening of the hitch receiver.
For example:
Truck receiver height = 25 inches
Step 2: Measure the Trailer Coupler Height
With the trailer level, measure from the ground to the bottom of the trailer coupler.
For example:
Trailer coupler height = 17 inches
Step 3: Calculate the Difference
Use:
Receiver Height − Coupler Height = Approximate Drop Needed
Example:
25" − 17" = 8"
You would therefore start by looking for an adjustable hitch capable of approximately 8 inches of drop.
If the coupler is higher than the receiver, the difference indicates the amount of rise you need instead.
When Does a 6-Inch Drop Hitch Make Sense?
A 6-inch adjustable hitch can be a good choice when there is a moderate difference between the height of your truck receiver and trailer coupler.
It often works well for:
-
stock-height pickup trucks
-
moderately raised trucks
-
utility trailers
-
boat trailers
-
campers
-
equipment trailers with relatively standard coupler heights
The advantage of a 6-inch adjustable hitch is that it provides useful vertical adjustment without using a longer drop than necessary.
If your measurement says you only need around 4–6 inches of drop, buying a much longer hitch simply because it looks more heavy-duty may not provide a meaningful benefit.
A 6-inch drop may be right for you if:
Your truck and trailer are already relatively close in height and you only need moderate adjustment.
When Should You Choose an 8-Inch Drop Hitch?
An 8-inch adjustable hitch gives you additional range.
This makes it particularly useful for truck owners who:
-
tow several different trailers
-
have a taller pickup
-
use aftermarket suspension
-
tow trailers with noticeably different coupler heights
-
want additional adjustability for future trailer setups
An 8-inch hitch sits in a useful middle ground.
It offers more vertical flexibility than a 6-inch setup without immediately moving into the longest drop-hitch configurations.
XPE currently offers adjustable 8-inch hitch configurations for both 2-inch and 2.5-inch receiver applications, depending on the model.
An 8-inch drop may be right for you if:
You need more flexibility than a standard setup and your receiver-to-coupler measurement approaches the 7–8 inch range.
Who Actually Needs a 10-Inch Drop Hitch?
A 10-inch drop hitch is generally intended for situations where the truck receiver sits substantially higher than the trailer coupler.
This often happens with:
-
lifted pickup trucks
-
heavy-duty trucks with tall ride heights
-
aftermarket suspension or larger tires
-
trailers with relatively low couplers
-
trucks that tow several trailers with very different heights
The key point is:
Don't buy a 10-inch drop hitch just because your truck is large.
Measure it.
A stock heavy-duty truck may still only need 6 or 8 inches of adjustment.
Meanwhile, a lifted truck with oversized tires could need the full 10 inches or more.
XPE currently offers a 2.5-inch receiver adjustable 10-inch drop hitch aimed at heavy-duty truck applications.
A 10-inch drop may be right for you if:
Your truck's receiver is significantly higher than your trailer coupler and your measurements confirm that a shorter hitch cannot bring the trailer close enough to level.
Does a Lifted Truck Automatically Need a 10-Inch Drop Hitch?
No.
This is one of the most common mistakes when shopping for a drop hitch.
People often think:
Lifted truck = biggest drop hitch available.
But lift height alone doesn't tell you the answer.
You also need to know:
-
receiver height
-
trailer coupler height
-
tire size
-
suspension height
-
trailer design
-
whether you tow multiple trailers
For example, two trucks may both have a 4-inch suspension lift.
But if one has 35-inch tires and the other has 33-inch tires, their receiver heights may be different.
And if they're towing different trailers, their required drop may be completely different.
Measure the actual combination.
Don't guess based on lift-kit size.
Why Trailer Level Matters
A trailer that sits reasonably level is generally easier to manage than one that is noticeably nose-up or nose-down.
An incorrect hitch height can affect how the load is carried between the trailer axles and tow vehicle.
That's why rise and drop exist in the first place: to compensate for different truck and trailer heights.
Industry towing guidance generally recommends measuring the truck receiver and level trailer coupler, then choosing the rise or drop closest to the difference.
So the objective isn't:
“What's the biggest hitch I can install?”
It's:
“What height puts my trailer in the correct towing position?”
Adjustable Hitch vs Fixed Drop Hitch
A fixed ball mount can work well when:
-
you own one truck
-
you tow one trailer
-
the trailer height rarely changes
But an adjustable hitch becomes much more useful when you:
-
own multiple trailers
-
tow with multiple vehicles
-
regularly change load conditions
-
need different ball heights
-
want both rise and drop positions
Instead of owning a separate:
2-inch drop,
4-inch drop,
6-inch drop,
and 8-inch drop ball mount,
an adjustable hitch lets you reposition the ball platform along the vertical channel.
For anyone who regularly switches trailers, this can significantly simplify the towing setup.
2-Inch vs 2.5-Inch Receiver: Don't Forget Fitment
Drop size isn't the only measurement that matters.
You also need to match the ball mount shank to your vehicle's receiver.
Common truck receiver sizes include:
2 inches
and
2.5 inches
If your vehicle has a 2-inch receiver, choose a hitch designed for a 2-inch receiver.
If your truck uses a 2.5-inch receiver, a native 2.5-inch hitch is generally the most direct solution.
XPE currently offers adjustable hitches for both receiver sizes, including heavy-duty 2.5-inch configurations.
Always confirm receiver size before ordering.
Don't Choose a Hitch Based Only on Drop
Imagine you determine that you need an 8-inch drop.
That doesn't automatically mean every 8-inch hitch is suitable.
You still need to check:
Receiver size
Does the shank match your truck?
Gross Trailer Weight rating
Is the hitch rated for your loaded trailer?
Tongue Weight rating
Can the hitch support the trailer's actual tongue weight?
Ball size
Does the hitch ball match your trailer coupler?
Common trailer ball sizes include:
-
1-7/8 inch
-
2 inch
-
2-5/16 inch
Vehicle towing capacity
Even if your hitch is rated for more weight, your truck still has its own towing limit.
Your complete towing setup should always remain within the rating of its lowest-rated component.
Why Dual-Ball Adjustable Hitches Are Useful
Many adjustable hitches use two ball sizes, commonly:
2-inch
and
2-5/16-inch
This allows you to switch between trailers with different couplers without replacing the entire ball mount.
XPE's adjustable dual-ball hitch lineup includes several 2-inch and 2.5-inch receiver configurations across multiple drop/rise ranges.
That combination of:
adjustable height + multiple ball sizes
can be especially useful for someone towing:
a boat during the summer,
an equipment trailer for work,
and a camper on weekends.
6-Inch vs 8-Inch vs 10-Inch: Which Should You Buy?
The answer becomes much easier once you measure.
Choose a 6-Inch Adjustable Hitch If:
-
your truck is stock or moderately raised
-
the receiver and coupler heights are relatively close
-
you need roughly 6 inches or less of adjustment
-
you don't need an unusually deep drop
Choose an 8-Inch Adjustable Hitch If:
-
your truck sits higher
-
you tow multiple trailer types
-
you want additional adjustment flexibility
-
your measurement approaches 7–8 inches of drop
Choose a 10-Inch Adjustable Hitch If:
-
you drive a significantly lifted truck
-
your receiver sits far above the trailer coupler
-
shorter adjustable hitches cannot achieve the required ball height
-
your measured height difference approaches 10 inches
The most important word in all three recommendations is:
Measured.
Don't choose based on appearance.
Example: Stock Pickup
Let's say:
Truck receiver height:
21 inches
Trailer coupler height:
17 inches
Difference:
4 inches
A 6-inch adjustable hitch would likely provide sufficient range.
You probably don't need a 10-inch model.
Example: Taller Heavy-Duty Truck
Truck receiver height:
25 inches
Trailer coupler height:
18 inches
Difference:
7 inches
An 8-inch adjustable hitch may provide the range needed while leaving additional adjustment positions.
Example: Lifted Truck
Truck receiver height:
29 inches
Trailer coupler height:
19 inches
Difference:
10 inches
Now a 10-inch drop hitch starts to make sense.
Again, these are simplified examples.
Actual towing setup, load, suspension behavior and manufacturer specifications still matter.
Common Drop Hitch Mistakes to Avoid
1. Buying the biggest drop available
More drop isn't automatically better.
Use the amount your setup actually requires.
2. Measuring on uneven ground
Measurements become much less useful if the truck or trailer is sitting on a slope.
3. Measuring the trailer while it isn't level
Level the trailer before measuring coupler height.
4. Ignoring receiver size
A 2-inch and 2.5-inch receiver require compatible hitch components.
5. Looking only at the hitch's maximum rating
The truck, receiver, hitch, ball, coupler and trailer all have their own ratings.
6. Forgetting ground clearance
A deeper-drop hitch extends farther below the vehicle.
Make sure your setup maintains appropriate clearance for driveways, ramps, uneven ground and your intended towing environment.
Final Verdict
There is no universal “best” drop hitch size.
A 6-inch hitch works well for many standard and moderately raised trucks.
An 8-inch hitch adds flexibility for taller pickups and drivers towing several trailer types.
A 10-inch hitch becomes useful when there is a substantial height difference between a higher truck receiver and lower trailer coupler.
But the correct answer should come from two measurements:
Truck receiver height
minus
Level trailer coupler height
That difference tells you approximately how much rise or drop you actually need.
Measure first.
Then choose the hitch.
Frequently Asked Questions
How do I know how much drop hitch I need?
Park the truck and level trailer on level ground.
Measure from the ground to the top of the receiver opening, then measure from the ground to the bottom of the trailer coupler.
If the receiver is higher, subtract the coupler height from the receiver height.
The result is the approximate amount of drop needed.
Is an 8-inch drop hitch enough for a lifted truck?
It depends on the actual receiver and coupler heights.
Some lifted trucks may only need 6–8 inches, while others may require 10 inches or more.
Measure the vehicle and trailer rather than choosing based only on lift height.
Is a 10-inch drop hitch too much for a stock truck?
It may provide more range than necessary.
A longer drop hitch should be selected because your measurements require it, not simply because more adjustment is available.
Can an adjustable hitch be used in the rise position?
Many adjustable ball mounts can be configured for both rise and drop, but always check the specific manufacturer's instructions.
Does a bigger drop hitch tow more weight?
No.
Drop range and towing capacity are separate specifications.
A 10-inch drop hitch is not automatically stronger than a 6-inch hitch.
Always check the actual GTW and tongue-weight ratings.
What size receiver do I need?
Use a hitch designed to match your vehicle's receiver.
Common pickup-truck configurations include 2-inch and 2.5-inch receivers.
Find the Right XPE Adjustable Trailer Hitch
XPE offers adjustable trailer hitch configurations for different receiver sizes, drop/rise ranges and towing requirements.
Whether you're setting up a stock pickup, heavy-duty truck or lifted towing vehicle, start by measuring the height difference between your truck receiver and trailer coupler.
Then choose the receiver size, adjustment range, ball configuration and towing capacity that match your setup.
[Explore XPE Adjustable Trailer Hitches →]
Built for Real Loads. Ready for Rough Roads.
