Choosing the right trailer hitch ball starts with one simple rule:
The hitch ball must match the size specified for your trailer coupler.
For many trailers in the U.S., that means choosing between three common ball sizes:
-
1-7/8 inch
-
2 inch
-
2-5/16 inch
But ball diameter is only one part of a correct towing setup.
You also need to confirm the hitch ball's weight rating, your trailer's loaded weight, the ball mount or adjustable hitch rating, receiver size, and the towing capacity of the vehicle itself.
If you tow more than one trailer, the answer can become even more important because different trailers may use different coupler sizes.
This guide explains how to identify the hitch ball your trailer actually needs—and how that choice fits into the rest of your towing setup.
Quick Answer: What Size Hitch Ball Do I Need?
Check the trailer coupler first.
The required ball size is normally marked or stamped on the coupler.
If the coupler specifies:
| Trailer Coupler | Hitch Ball Required |
|---|---|
| 1-7/8" | 1-7/8" hitch ball |
| 2" | 2" hitch ball |
| 2-5/16" | 2-5/16" hitch ball |
Do not choose a hitch ball simply because it looks close enough.
The ball and coupler are designed to work as a matching connection.
You also should not assume that your receiver size determines your ball size.
A truck with a 2-inch receiver, for example, can use a ball mount equipped with different trailer ball sizes.
Likewise, a 2.5-inch receiver does not automatically mean the trailer uses a 2-5/16-inch ball.
These measurements describe different parts of the towing system.
Where Do I Find the Trailer Ball Size?
Start at the trailer—not the truck.
Look at the coupler located at the front of the trailer tongue.
The required hitch ball diameter is normally marked on the coupler body.
Depending on the coupler, the marking may be located:
-
On top of the coupler
-
Near the latch
-
On the side of the coupler
-
Around the stamped specification area
Look for a marking such as:
1-7/8"
2"
or
2-5/16"
That marking is more useful than trying to guess the ball size from the trailer's appearance.
Two trailers that look similar can use different couplers.
1-7/8" vs 2" vs 2-5/16" Hitch Balls
The three sizes may look fairly similar when sitting on a workbench, but they are not interchangeable.
1-7/8-Inch Hitch Ball
A 1-7/8-inch ball is commonly found on lighter trailer setups.
If the coupler is specifically marked 1-7/8", use a properly rated 1-7/8-inch hitch ball.
Do not automatically upgrade to a larger ball because it appears stronger.
The ball diameter needs to match the coupler.
2-Inch Hitch Ball
The 2-inch hitch ball is common across many trailer applications.
Again, the deciding factor should be the trailer coupler and the ratings of the towing system rather than the trailer category alone.
A coupler marked 2" needs a 2-inch ball with an appropriate capacity for the loaded trailer.
2-5/16-Inch Hitch Ball
The 2-5/16-inch ball is commonly used in heavier towing configurations.
XPE also uses 2-5/16-inch balls in several of its heavy-duty adjustable hitch configurations.
However, choosing a 2-5/16-inch ball because your truck is large—or because your trailer is heavy—is not enough.
The trailer coupler still needs to be designed for that ball diameter.
Does Hitch Ball Size Determine Towing Capacity?
No.
This is an important distinction.
Ball diameter and towing capacity are related specifications, but they are not the same specification.
Two hitch balls with the same diameter can have different ratings depending on their construction and design.
The same principle applies to ball mounts and adjustable trailer hitches.
For example, XPE currently offers different hitch configurations using some of the same ball diameters but with different overall towing specifications.
That is why you should read the rating for the specific hitch or ball assembly you are using, rather than assuming that every 2-inch or every 2-5/16-inch ball has the same capacity.
Your Towing System Is More Than the Hitch Ball
Selecting the correct ball does not automatically mean the complete towing setup is correctly rated.
Before towing, consider the ratings and requirements of the complete connection:
-
Tow vehicle
-
Receiver hitch
-
Ball mount or adjustable hitch
-
Hitch ball
-
Hitch pin or locking system
-
Trailer coupler
-
Trailer
The towing system should remain within the limits specified for every component.
A higher-rated ball mount does not increase the towing capacity of the truck.
Likewise, installing a larger hitch ball does not increase the rating of the trailer, receiver, or vehicle.
The lowest applicable rating in the towing system still matters.
Hitch Ball Size Is Not the Same as Receiver Size
This causes a lot of confusion.
When someone says:
“I have a 2-inch hitch.”
they could be referring to two completely different measurements.
Receiver Size
The receiver is the square opening mounted on the tow vehicle.
XPE's current adjustable hitch range includes products designed for both:
-
2-inch receivers
-
2.5-inch receivers
Hitch Ball Size
The hitch ball is the round connection that fits inside the trailer coupler.
Common ball sizes include:
-
1-7/8 inch
-
2 inch
-
2-5/16 inch
So:
2-inch receiver ≠ automatically 2-inch hitch ball.
And:
2.5-inch receiver ≠ automatically 2-5/16-inch hitch ball.
You have to check both measurements separately.
What If I Tow More Than One Trailer?
This is where multiple-ball and adjustable hitch designs become useful.
Imagine that one trailer uses a 2-inch coupler while another uses a 2-5/16-inch coupler.
Using a hitch that supports multiple appropriate ball sizes can reduce the need to replace the entire ball mount every time you change trailers.
XPE currently carries both dual-ball and tri-ball configurations.
For example, XPE has adjustable hitch models that combine:
2-inch + 2-5/16-inch balls
and other configurations that include:
1-7/8-inch + 2-inch + 2-5/16-inch balls.
This can be useful for owners who regularly switch between trailers.
But the same rule applies every time:
Rotate or configure the hitch to the ball diameter specified by the trailer coupler before towing.

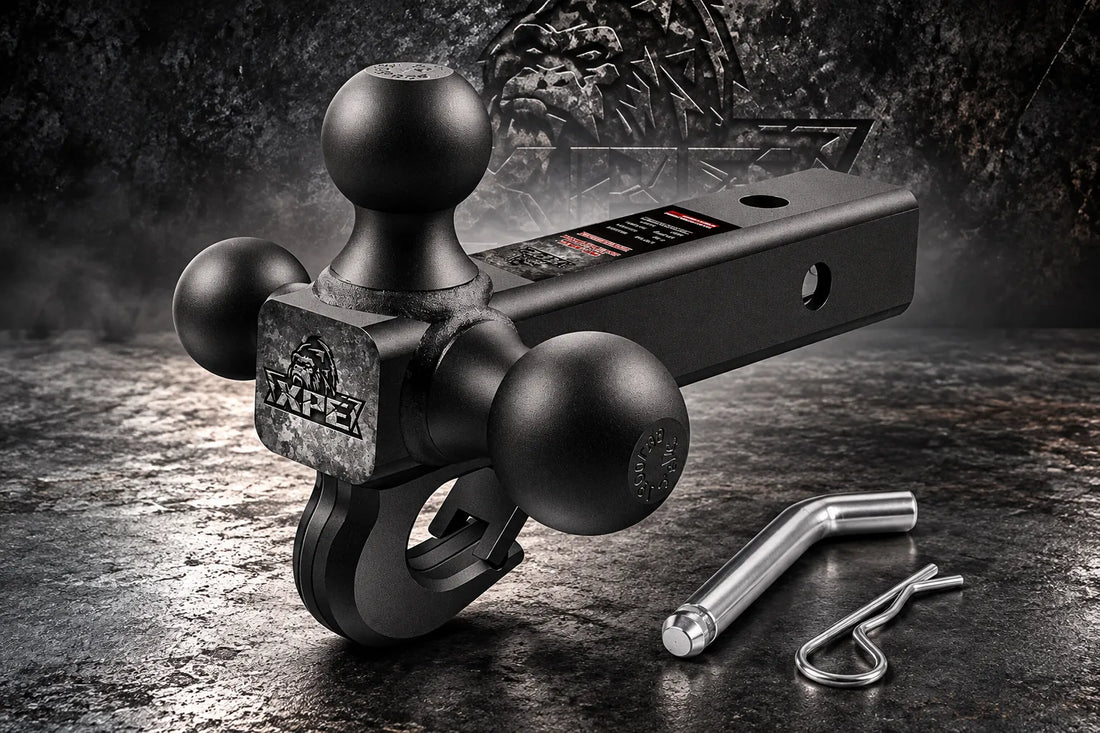

XPE Tri-Ball Options for Multiple Trailer Sizes
For drivers using several trailer coupler sizes, XPE currently offers tri-ball configurations that include all three common sizes:
-
1-7/8"
-
2"
-
2-5/16"
One current XPE configuration combines those three ball sizes with a ball mount designed for a 2-inch receiver.
XPE also carries an adjustable tri-ball configuration designed for a 2.5-inch receiver, combining multiple ball sizes with vertical hitch adjustment.
The advantage here isn't simply “more balls.”
It is flexibility.
A multi-ball configuration can make more sense for someone who regularly changes trailers than for someone who always tows the same trailer.
If you only use one trailer and its setup never changes, additional configurations may provide little practical benefit.
Choose based on how you actually tow.
Internal link: XPE Ball Mounts & Trailer Balls collection
What If My Trailer Uses a 2-Inch or 2-5/16-Inch Ball and I Need Height Adjustment?
Ball size solves one part of the setup.
Hitch height solves another.
Your trailer should be connected at an appropriate towing height, which is why ball mounts are available in different rise and drop configurations.
XPE currently offers adjustable hitch configurations using both 2-inch and 2-5/16-inch balls, including models designed for different receiver sizes and adjustment ranges.
If the truck's receiver sits significantly above the trailer coupler, you may need a drop configuration.
If the required height difference changes between trailers, an adjustable hitch can make switching easier.
Before deciding whether you need a 6-inch, 8-inch, or 10-inch drop, measure the truck receiver and trailer coupler instead of choosing by appearance.
Internal link: 6-Inch vs 8-Inch vs 10-Inch Drop Hitch: Which One Do You Need?
How to Choose the Correct Hitch Setup Step by Step
Instead of starting with a product, start with the trailer and work backward.
Step 1: Check the Trailer Coupler
Find the ball-size marking.
That tells you whether the trailer needs a:
-
1-7/8"
-
2"
-
2-5/16"
hitch ball.
Step 2: Check the Trailer's Actual Loaded Weight
Don't look only at empty trailer weight.
Consider the trailer as it will actually be towed, including cargo and equipment.
The required ratings need to account for the real towing setup.
Step 3: Check Your Vehicle's Receiver Size
Measure or verify the receiver fitted to your truck or SUV.
XPE's current hitch products include both 2-inch and 2.5-inch receiver configurations, so this measurement needs to be confirmed before choosing the ball mount.
Step 4: Determine the Required Drop or Rise
Park the truck and trailer on reasonably level ground.
With the trailer level, compare the receiver height with the trailer coupler height.
If the receiver is higher, you may need drop.
If the receiver is lower, you may need rise.
For a complete measurement walkthrough, read XPE's guide to choosing between a 6-inch, 8-inch, and 10-inch drop hitch.
Step 5: Check Every Relevant Rating
Confirm the ratings for the:
-
Vehicle
-
Receiver
-
Ball mount
-
Hitch ball
-
Trailer coupler
-
Trailer
Never assume that one highly rated component increases the capacity of the rest of the towing system.
Step 6: Inspect the Connection Before Towing
Before every trip, verify that:
-
The correct ball size is being used
-
The coupler is fully latched
-
The hitch pin is secure
-
Safety chains are connected correctly
-
Trailer wiring is connected
-
Lights are working
-
The load is secured
-
No towing component shows obvious damage or excessive wear
XPE already covers this process in more detail in its towing safety checklist.
Internal link: 7 Towing Safety Checks to Make Before Every Trip
Common Hitch Ball Size Mistakes
Mistake 1: Choosing the Ball Based on the Truck
The truck tells you what receiver and towing capacity you have.
The trailer coupler tells you what ball diameter it requires.
Do not mix those two measurements.
Mistake 2: Assuming a Bigger Ball Is Automatically Better
A larger ball is not automatically the correct ball.
Correct fitment comes first.
Use the diameter specified for the coupler and verify the rating of the exact component.
Mistake 3: Looking Only at Hitch Capacity
A high-capacity ball mount does not override a lower vehicle, receiver, ball, coupler, or trailer rating.
Think of the towing system as a complete chain rather than one product.
Mistake 4: Forgetting Hitch Height
You can choose the correct hitch ball and still have an incorrect towing setup if the trailer is significantly nose-up or nose-down.
Ball size and hitch height solve different problems.
Check both.
Mistake 5: Assuming Every Trailer You Own Uses the Same Ball
If you tow several trailers, check each coupler individually.
This is one reason dual-ball and tri-ball hitch designs exist.
Which XPE Hitch Configuration Makes Sense?
There isn't one XPE hitch that is automatically correct for every truck and trailer.
Start with four questions:
1. What receiver size does your vehicle have?
2 inch or 2.5 inch?
2. What ball size is specified on your trailer coupler?
1-7/8", 2", or 2-5/16"?
3. How much rise or drop do you actually need?
Measure the receiver and coupler heights.
4. What towing capacity does your complete setup require?
Use the loaded trailer weight and stay within the ratings of the complete towing system.
Once those four points are known, it becomes much easier to narrow the XPE product range.
Drivers towing multiple trailers may benefit from XPE's dual-ball or tri-ball options.
Drivers with different trailer heights may also benefit from an adjustable configuration.
But fitment and ratings should always determine the product—not appearance alone.
Internal link: XPE Ball Mounts & Trailer Balls
Frequently Asked Questions
What is the most common trailer hitch ball size?
2-inch hitch balls are common across many trailer applications, but “common” does not mean correct for every trailer.
Check the size specified on your trailer coupler before choosing a ball.
How do I know whether I need a 2-inch or 2-5/16-inch hitch ball?
Check the marking on the trailer coupler.
A coupler designed for a 2-inch ball requires a 2-inch ball.
A coupler designed for a 2-5/16-inch ball requires a 2-5/16-inch ball.
Do not choose between the two based only on trailer appearance or truck size.
Can I use a 2-inch ball with a 2-5/16-inch coupler?
Use the ball diameter specified by the trailer coupler.
A differently sized ball should not be treated as interchangeable simply because the coupler appears able to close around it.
Does a 2-inch receiver require a 2-inch hitch ball?
No.
Receiver size and hitch ball size are separate measurements.
The receiver determines the shank or ball-mount fitment at the vehicle.
The trailer coupler determines the ball diameter required at the trailer.
What if I tow trailers with different ball sizes?
A dual-ball or tri-ball hitch can make switching between compatible trailer setups easier.
XPE currently offers products containing combinations of 1-7/8-inch, 2-inch, and 2-5/16-inch balls.
Always select the correct ball position for the trailer being connected.
Do I need an adjustable hitch?
Not necessarily.
If you use one truck and one trailer with a consistent coupler height, a fixed setup may be sufficient.
An adjustable hitch becomes more useful when you tow trailers with different coupler heights or use towing vehicles with different receiver heights.
Does a 2-5/16-inch ball mean I can tow more weight?
Not automatically.
Ball diameter by itself does not determine the safe towing capacity of the entire system.
Check the rating of the specific hitch ball along with every other towing component and the tow vehicle.
Final Check Before You Tow
If you're standing behind your truck asking:
“What size hitch ball do I need?”
don't guess from the truck.
Walk to the front of the trailer and check the coupler.
Then verify:
Coupler size → hitch ball size
Receiver size → ball mount fitment
Receiver/coupler height → drop or rise
Loaded trailer weight → required ratings
Once all four match, you can choose the towing equipment that actually fits the job.
XPE's current hitch lineup includes 2-inch and 2.5-inch receiver configurations, dual-ball adjustable hitches, and tri-ball options for drivers who work with different trailer setups.
Choose the configuration that matches your actual truck, trailer, coupler, height, and load—not simply the largest hitch available.
Internal link CTA: Explore XPE Ball Mounts & Trailer Balls
